Currently I do own the following Amiga Systems:

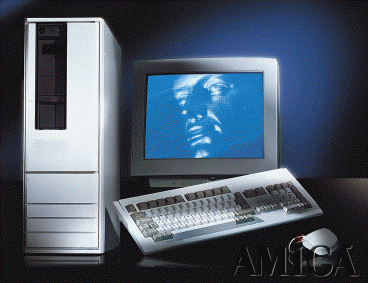

two AmigaLogo A4000T

(one of them is currently broken)
A4000T MC680x0





MC68060

. Phase 5 CyberStorm MKII (MC68060/50MHz) with SCSI-Module, 128 MB PS2, 60ns, instead of the orginal A3640 (MC68040/25MHz)
. Phase 5 CyberVision 64 with 4MB
. MacroSystem's VLab Motion
. MacroSystem's Toccata
. 2* IBM Ultrastar 2ES, 9 GB U-SCSI (DNES 309170) Harddisks
. Fujitsu MCD3130SS 1.3GB MO-Drive
. Sony CD-RW Burner
. Nakamichi MJ-4.8si 4 Disk 8x CD-Wechsler
. Village Tronic Ariadne network interface card
. Arxon Scandoubler
. HyperCOM 4
. 2. Floppy Drive (HD) Chinnon FZ-357A
. fitted into an EYE Servertower with 16MB RAM onboard


an A2000 with:

. Phase 5 Blizzard 2060 (MC68060/50MHz), 96 MB PS2, 60ns, reworked from MC68040@40MHz
. Village Tronic Picasso IV graphics board with Pablo, Paloma and Concierto Module
. Village Tronic Ariadne network interface card
. HyperCOM 4
. Highway USB-Card
. Seagate Barracuda 9, 4.5GB (ST34573N)
. Fujitsu MCD3130SS 1.3GB MO-Drive
. Nakamichi MJ-5.16si 5 Disk 16x CD-Changer
. NEC Multispin 3xi CDROM
. 2nd Floppy Drive (HD) Chinnon FZ-357A


an A4000D and a CD32 which are currently broken


an A2000T I'm currently building:

. GVP G-Force 040/33 with 16MB
. Village Tronic Ariadne network interface card
. Village Tronic Picasso IV graphics board with Pablo and Paloma Module
. IOBlix
. Commodore A2091 SCSI HA with 2MB RAM
. Fujitsu M2513A2 640MB MO-Drive
. Toshiba 5701B
. fitted into an AT-Tower


A600 (mainly used for testing the cnet.device) equipped with:

. 1GB CompactFlash card with IDE Adapter
. 4GB 2.5" IDE HD


and 3 A500 (one of them is currently broken) and a broken CD32 with at least the following (spare) parts:

. GVP 530/40 with MMU and FPU (behaves strange)
. GVP Series-II (with the well-known overclocking error)
. Connexion network interface card (not very reliable)(currently missing)
. BSC Multiface 3
. 2* BSC Multiface II
. 2* Oktagon 2008 with 4MB
. Oktagon 508 with 6MB
. Retina 4MB Graphics board
. Commodore A590 (probably still broken)
. Fujitsu M2622FA / M2624FA 330/520MB
. Toshiba 5701B
. Floppy drives (some are HD)(mostly Chinnon and Teak)
. Quickbyte 5 EPROM Burner
. MTEC 030/20
. Village Tronic Ariadne network interface cards (one probably still broken)
. DCE Megi Chip (quite temperatur sensitiv)
. Phase 5 CyberStorm MKII (MC68060/50MHz) with SCSI-Module, reworked from MC68040/40MHz
. Phase 5 CyberStorm PPC (604e/180MHz and MC68060/50MHz)
. Phase 5 CyberStorm PPC (604e/200MHz and MC68060/50MHz)
. Phase 5 CyberVision PPC with 8MB
. Phase 5 CyberVision PPC with 8MB
. Village Tronic Picasso IV graphics board
. Merlin Graphics board with an Excalibur
. Hydra Ethernet board (currently missing)
. Commodore A2065 Ethernet board
. Commodore A3640 CPU board
. Commodore A3630 CPU board
. Commodore A4000 D Motherboard (currently broken) with riser card
. Micronic A500 Zorro Expansion board

LINE

marque ! AMIGA forever ! marque

LINE

Here are the Mountlists for the 3.5" MO-Drives.

Then I've listed some Hardware-Tips for the A4000T.
Further on a list of PCMCIA Cards supported by the AMIGA A1200 and A600 and the Rework instructions for Phase5/DCE Turboboards.
